NGFW Models

Next-Generation Firewalls

Designed for security, availability and efficiency.

Every NGFW model is packed with

  • Centralized management everywhere - data centers, at the edge, in branch offices and the cloud
  • Extensive security built in: VPN, IPS, anti-evasion, encrypted inspection, SD-WAN and even mission-critical application proxies. (No additional licenses or installation required.)
  • Designed for the most rigorous networks (see Certifications).
  • Upgrade without downtime.
  • Most models are reconfigurable and give a longer lifetime than single-purpose devices. Read extensible networking interfaces.

Compare NGFW models side by side.

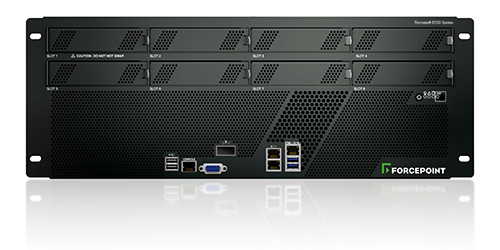

6200 Series

6200 Series

  • Ideal for data centers
  • Up to 66 interfaces
  • Firewall throughput 240 Gbps
  • IPS & NGFW throughput 22 Gbps
  • (specifications)
3400 Series

3400 Series

  • Ideal for campus networks and data centers
  • Up to 67 interfaces
  • Firewall throughput 200-300 Gbps
  • IPS & NGFW throughput 15-35 Gbps
  • (specifications)
3300 Series

3300 Series

  • Ideal for campus environments
  • Up to 35 interfaces
  • Firewall throughput 80-160 Gbps
  • IPS & NGFW throughput 9-15 Gbps
  • (specifications)

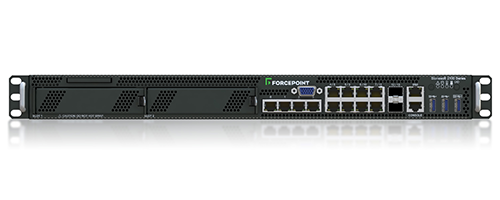

2100 Series

2100 Series

  • Ideal for network edge
  • Up to 28 interfaces
  • Firewall throughput 60-80 Gbps
  • IPS & NGFW throughput 5-7.5 Gbps
  • (specifications)
1100 Series

1100 Series

  • Ideal for network edge
  • Up to 16 interfaces
  • Firewall throughput 50-60 Gbps
  • IPS & NGFW throughput 1.5-3 Gbps
  • (specifications)

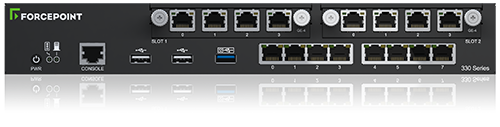

300 Series

300 Series

  • Ideal for remote sites and branch offices (desktop design)
  • 8 interfaces (2 optional modules on model 335)
  • WLAN 802.11 ac/a/b/g/n optional on model 335W
  • Firewall throughput 4-7 Gbps
  • IPS & NGFW throughput 350-1000 Mbps
  • (specifications)

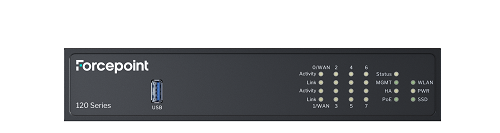

120 Series

120 Series

  • Ideal for remote offices (desktop design)
  • 8 interfaces
  • 2 Power over Ethernet (PoE+) ports
  • WLAN 802.11 ac/a/b/g/n optional on model 120W
  • Firewall throughput 4 Gbps
  • IPS & NGFW throughput 450 Mbps
  • LTE model available
  • (specifications)
N60 Series

60 Series

  • Idea for remote offices, branches and stores
  • Up to 4 interfaces
  • Firewall throughput 2 Gbps
  • IPS & NGFW throughput 350 Mbps
  • (specifications)

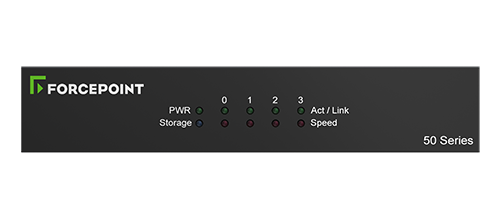

50 Series

50 Series

  • Ideal for small offices or home offices (desktop design)
  • 4 interfaces
  • LTE on model N51LTE
  • Firewall throughput 1.9 Gbps
  • IPS & NGFW throughput 200 Mbps
Modular Network Interfaces

Modular Network Interfaces

Forcepoint rack-mounted NGFWs as well as the desktop NGFW 325 and NGFW 115 accept a range of extensible network interfaces (including bypass modules that are often used with IPS), providing flexibility and adaptability to new network infrastructure. See Module Specifications for details.

Firewall throughput based on UDP 1518 bytes; NGFW throughput based on HTTP 21k bytes

Cloud Appliances



Virtual Appliances

  • Unified Forcepoint NGFW software
  • Available for KVM and VMware ESXi and NSX
  • Scales to 64 CPUs
  • Automates network microsegmentation
  • Can be clustered with physical firewalls
