The many faces of Ursnif - email hijacking, mailslots, and insecure servers

Distribution

Past campaigns have generally relied on the common delivery mechanism of broad malicious email campaigns carrying a range of attachment types which, upon execution, ultimately download the main Ursnif payload from a remote location. Since late 2017 one set of attackers appear to have taken something of a hybrid approach, hijacking legitimate email conversations in a manner similar to the more targeted technique of Business Email Compromise (BEC).

In the case of BEC, companies with frequent wire transfers and external suppliers are often the main focus. There is usually a preliminary step of harvesting login credentials, typically by deploying keyloggers or through phishing attacks. Once the credentials have been collected and business emails can be accessed remotely, cybercriminals will start monitoring the internal communication of the target environment. When a financial transfer is about to happen between the company and one of its suppliers the email thread is ‘hijacked’ and a new, fake invoice is delivered from what looks like an internal or trusted sender.

Critically, the body of the email delivering the new invoice reflects the previous conversation between the two parties, aiming to fool the recipient to use the newly delivered invoice instead of the previous one.

In the case of the observed Ursnif campaign, the email threads being hijacked are not necessarily finance related but do typically involve communications between companies and their customers or suppliers. The full ‘tail’ of the thread is included in the reply, along with an apparently accurate signature of the sender being spoofed.

The body of the email is somewhat less exceptional, typically referring to the attached weaponised document with a short note such as ‘please review the attached’ – often a warning sign, especially in unexpected emails.

In one case we have recorded, the email thread being used was over seven years old, suggesting a creative but ultimately flawed (and presumably semi- or fully-automated) approach to selecting threads to hijack.

Payload

Instead of a digital invoice (as one would expect with BEC), the attachment is a Microsoft Word OLE document posing as a request or inquiry. In some, but not all cases, the filename of this attachment also features the name of the spoofed sender’s organisation.

The document contains one or more highly obfuscated macros and shows an embedded image trying to convince the user to enable macros if they are otherwise disabled. In the current campaign, these images have been translated and localised as appropriate for the recipient.

For those less cautious recipients with macro execution enabled by default, an immediate download of another file from a dedicated download server will occur.

The recent iterations took two forms, either directly downloading a malicious executable or alternatively downloading a short, obfuscated JavaScript/PowerShell script before reaching the final payload. These ‘.class’ or ‘.yarn’ payloads, despite their file extension, are portable executables (PE) containing Ursnif.

The download requests typically follow formats similar to those shown below.

Direct download

Request 1 - hxxp://qwqw1e4qwe14we[.]com/KOM/testv.php?l=boun4.yarn

​Intermediate JS/PS

Request 1 - hxxp://qwundqwjnd[.]net/cachedmajsoea/index.php?e=kuuud
Request 2 - hxxp://qwundqwjnd[.]net/lipomargara/kuuud.yarn

​Download servers

During our investigation we observed multiple distribution domains being registered and shut down on a daily basis.

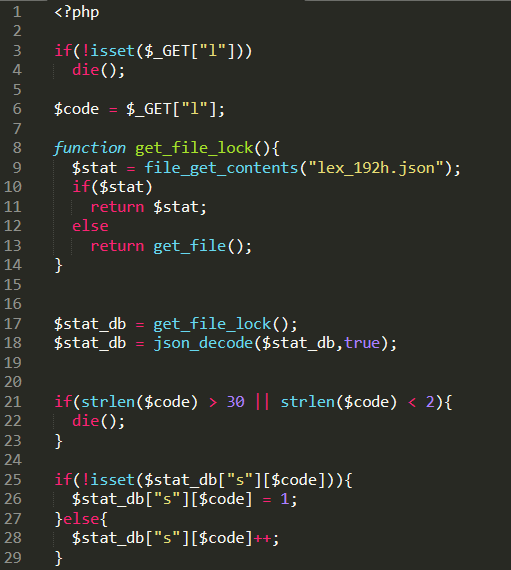

These servers appear to track their own infection statistics, maintained by code within testv.php as part of the download process. These statistics are available from a stats.php page which displays the logged data from a JSON file (lex_192h.json) stored on the server.

Interestingly, the actors behind these distribution servers do not appear to be particularly concerned with OPSEC: the JSON files often contain statistics for filenames which were part of previous campaigns and no longer exist.

A similar oversight was the occasional presence of files called ‘crypt_xxxx_yyyy[a-z].exe’ in open directories. These files point to some of the specifics of the botnet featured in the campaign, with ‘yyyy’ representing the botnet ID stored in Ursnif's internal configuration data for a given sample.

The old-new Ursnif code

The way the statistics are implemented suggests that the actors behind the campaign either preferred to avoid modifying Ursnif's core or that there are different groups with different skill levels involved in these operations. Statistics could be sent to the main Ursnif C2, but that would require proper understanding of its communication code and the parallel communications method suggests that the actors running these operations might not be the same ones maintaining the source code.

Having said that, there have still been some changes to the Ursnif code as part of this campaign: the downloaded ‘.class’ or ‘.yarn’ files differ from other ‘loader + DLL’ solutions seen in the past, indicating that the packaging was modified for this campaign.

All of the samples examined had the same internal timestamp of Apr 17 2018 and had been packed. As a result of the packing process, the observed file sizes vary from approximately 700KB to 2MB. When run, the executable unpacks the original payload into memory, overwriting the packer code itself and passing over execution to the next layer. At this stage there is an additional piece of code responsible for creating two new threads, both involving the use of Mailslots.

Mailslots

Mailslots are an Inter Process Communication (IPC) protocol and have been part of Windows distributions for more than a decade. Their purpose in the context of Ursnif is quite straightforward: one thread reads embedded data from memory, unpacks it and writes the result to ‘\\.\mailslot\msl0’, while the other thread pulls that data from the Mailslot.

The use of Mailslots is apparently intended, in combination with other previously documented ‘tricks’ such as mouse movement tracking, simply to hamper analysis of the malware.

The data pulled from the Mailslot is ultimately a DLL (crm.dll) to which execution is passed. The main function of crm.dll is to unpack and load its final stage, the client.dll. This is the last step in the execution chain and comprises the main body of Ursnif code and its configuration data such as C2 server addresses, botnet IDs, timeouts etc.

Protection statement

Forcepoint customers are protected against this threat at the following stages of attack:

Stage 2 (Lure) – Malicious emails associated with this attack are identified and blocked.
Stage 5 (Dropper File) – Malicious files are prevented from being downloaded.
Stage 6 (Call Home) – Attempts to contact C2 servers are blocked.

Conclusion

Comparing these samples to previously documented Ursnif variants there are some notable differences in the way they work: e.g. there were no signs of TLS callback usage, yet the introduction of the Mailslot mechanism was an apparently new addition to the old codebase.

Considering that as of mid-May 2018 there appears to be a new ‘TLS callback’ variant in the wild, it seems plausible that multiple cybercriminal groups of differing skill levels are trying to improve on the original code. A minority of them potentially have the skills to improve the main code, whereas others appear to ‘make do’ with writing custom distribution code, leaving the core of the malware untouched.

As a result it appears that there are now multiple forks of Ursnif/Gozi in the wild. However, their main purpose is still the same: stealing credentials and banking related information.

As always when working with email attachments, it’s important to pay attention to what file one is about to open: any document which suggests modifying the security settings within Word should be avoided. Overall, it’s always advisable to be vigilant, paying extra attention to who the sender in the case of unexpected or unusual emails.

Indicators of Compromise

SHA1

018f88acc9591f0ca3fcfec9297297173c5b0232
0b0dab27ca660ba528a29de5bdf5a9af603a6e1a
185dba0cfdbf512fbf64ab41c0771f2784032a8a
1ffb6a64b703a2c40859b76a2335c724e5763806
220c38a509a2f0e62b279ad4f140e0aed79f2816
2540a48d0587ce4a9b6859282ec2993dc5fea95b
3787934bf18909a2f17eaf916a4ef38d94035ebf
3f772913f9fe8a1c448efba4412ac17ba66f5e94
3fb7059f1e10fef0052427b6324c2eab67140381
40f1ac132672b3b2006b2852e7b2bbaf5cff43ac
45fb72f34b8b018d9dc5730e22e9850951395c59
482ce27840693991d5bf7b8ee2d298aeb4f8db66
4b431fade4c87ac138923c59cba920e1219ab419
4f8a4b73e7537ec1d9ad5124c3d09235b6573a94
619af677b3754888296c1def52517eeeeb31058a
74ab56a3997606933795f6377c2f86df99d51810
79dde9c7e0cceee8e5d9626819e2c33f9cce0425
8be96462a9a47bb95e5bc9ab61315e38feda26b9
8c274f0b095f9533212d0171001d47e71919ddb2
8fde99d9727e7c431fd19ce68cff44835e33e43b
962905f9fba3aee435d12268d00dc6ff7cca14f9
9da4bb1b1c6730231924047266624ba439ad9d91
9def879bb4c602f9945cec3b554ce34b0708638d
acc225210a206b81e4b4e8669affbc21407a53fb
b061889548e9c23b02dcab0910952d686b58026f
b51f9dd4735d841e4c787be717a383eb2b2d979b
b7d8a0b1da3dde8dec1f121e9eceefbde02f2631
c5fe4bc083ae504b37277e5090a1413fe1afddc6
cf24b05895101663a1d7b0d4f671918c2d8e60ae
d69c31c87a10c940ca928aaf484b258c64e4c866
d8f028d06027718ff4d5d18a22d225e9bbd2fe0a
dfdbe5b5b5fdd28226771c95b0cf8f44f4710031
e24e85eb34ea9cb3b7ed7057e566d342a3b9b69c
e9e6821cf4ec1d55bc78de93fc0fe1b8a0f8c59e
edb7fe4cc6f05f5ae9ff6c3d1c7e8e237c6c679a
ee0620b09b374a49a10859d6877c45d988730498
eef49be4569f68de71c968fc38d7cfe5b5ac0eab
f64e25db4f2cfec731d40f7a5547b2b8e48cf9e3
f90e096dfe0a07d55ab9691c6db70faac924580e

URLs

hxxp://14ca1s5asc45[.]com
hxxp://9qwe8q9w7asqw[.]com
hxxp://asd5qwdqwe4qwe[.]com
hxxp://d4q9d4qw9d4qw9d[.]com
hxxp://dq9wq1wdq9wd1[.]com
hxxp://dqowndqwnd[.]net
hxxp://eq9we1qw1qw8[.]com
hxxp://fqw4q8w4d1qw8[.]com
hxxp://g98d4qwd4asd[.]com
hxxp://gtqw5dgqw84[.]com
hxxp://hhhasdnqwesdasd[.]com
hxxp://hhjfffjsahsdbqwe[.]com
hxxp://jjasdkeqnqweqwe[.]com
hxxp://kkjkajsdjasdqwec[.]com
hxxp://kkmmnnbbjasdhe[.]com
hxxp://mmmnasdjhqweqwe[.]com
hxxp://oiwerdnferqrwe[.]com
hxxp://ooaisdjqiweqwe[.]com
hxxp://oooiasndqjwenda[.]com
hxxp://oooiawneqweasd[.]com
hxxp://oqk4123613123[.]net
hxxp://oyiyuarogonase[.]net
hxxp://popopoqweneqw[.]com
hxxp://ppoadajsqwenqw[.]com
hxxp://ppoasdqnwesad[.]com
hxxp://pqwoeasodiqwejes232[.]com
hxxp://q5q1wdq41dqwd[.]com
hxxp://qiwjesijdqweqs[.]com
hxxp://qw6e54qwe54wq[.]com
hxxp://qw8e78qw7e[.]com
hxxp://qwd1q6w1dq6wd1[.]com
hxxp://qwd1qw8d4q1wd[.]com
hxxp://qwdohqwnduasndwjd212[.]com
hxxp://qwe1q9we1qwe51[.]com
hxxp://qwekasdqw8412[.]net
hxxp://qweoiqwndqw[.]net
hxxp://qwojdaisd1231[.]net
hxxp://qwqw1e4qwe14we[.]com
hxxp://qwqweqw4e1qwe[.]com
hxxp://qwundqwjnd[.]net
hxxp://r9qweq19w1dq[.]com
hxxp://rqw1qwr8qwr[.]com
hxxp://rrrradkqwdojnqwd[.]com
hxxp://sdf5wer4wer[.]com
hxxp://sdjqiweqwnesd[.]com
hxxp://t8q79q8wdqw1d[.]com
hxxp://tr8q4qwe41ewe[.]com
hxxp://tttiweqwneasdqwe[.]com
hxxp://uuasdjqwehnasd[.]com
hxxp://uurty87e8rt7rt[.]com
hxxp://uuyyhsdhasdbee[.]com
hxxp://wdojqnwdwd[.]net
hxxp://wdq9d5q18wd[.]com
hxxp://yyjqnwejqnweqweq[.]com
