Forcepoint NGFW Appliance Certifications

Unified operation and high performance

Powered by a unified core, Forcepoint Next Generation Firewall (NGFW) Appliances offer consistent capabilities and management across all environments. Forcepoint NGFW appliances are designed for efficiency, availability and security, and have a broad range of built-in (no additional licenses or installation required) security features including: VPN, IPS, NGFW and even mission-critical application proxies. These appliances provide an additional cost benefit because they can be repurposed quickly for a longer lifetime than single-purpose devices.

Physical Appliances

Forcepoint NGFW appliances support a wide range of customizable network interfaces (see Appliance Specifications) and mixed clustering of different models, which makes it possible to upgrade hardware and software in the cluster with zero downtime. All models run unified Forcepoint NGFW software, which provide consistent capabilities, high performance and centralized management. Forcepoint NGFW appliances are designed for use in the most rigorous networks (see Certifications).

All appliances (except the 100 series) can be deployed as either a Layer 2 or Layer 3 firewall or next generation intrusion prevention system (IPS). Most models have extensible networking interfaces (including bypass modules), which allow for configurations changes throughout the device’s life span.

5200 Series

5200 Series

  • Ideal for data centers
  • Up to 50 interfaces
  • Firewall throughput 120 Gbps
  • IPS NGFW throughput 10 Gbps
3300 Series

3300 Series

  • Ideal for campus environments
  • Up to 35 interfaces
  • Firewall throughput 80-160 Gbps
  • IPS & NGFW throughput 9-11 Gbps

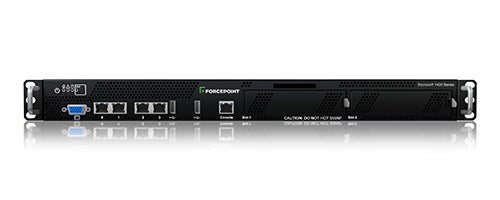

1400 Series

1400 Series

  • Ideal for network edge
  • Up to 20 interfaces
  • Firewall throughput 30-40 Gbps
  • IPS & NGFW throughput 3-4.5 Gbps

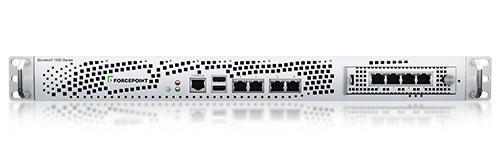

1000 Series

1000 Series

  • Ideal for office environments
  • Up to 12 interfaces
  • Firewall throughput 10-20 Gbps
  • IPS & NGFW throughput 400 Mbps-1.2 Gbps

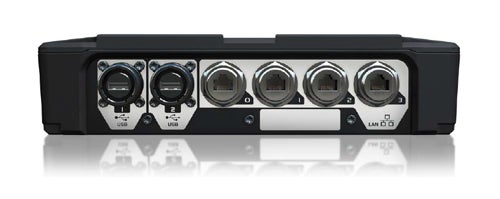

320X - Ruggedized

320X - Ruggedized

  • Ideal for branch offices (desktop design)
  • 4 interfaces
  • WLAN 802.11 a/b/g/n
  • Firewall throughput 2 Gbps
  • IPS & NGFW throughput 200 Mbps
  • (specifications)
300 Series

300 Series

  • Ideal for branch offices (desktop design)
  • 5 interfaces (2 optional modules on model 325)
  • WLAN 802.11 a/b/g/n optional on model 325
  • Firewall throughput 4 Gbps
  • IPS & NGFW throughput 200 Mbps
100 Series

100 Series

  • Ideal for small offices or home offices (desktop design)
  • 10 interfaces (8 integrated switch ports; 1 optional module on model 115)
  • WLAN 802.11 ac/a/b/g/n on model 115
  • Firewall throughput 1.5 Gbps
  • IPS & NGFW throughput 150 Mbps
Modular Network Interfaces

Modular Network Interfaces

Forcepoint rack-mounted NGFWs as well as the desktop NGFW 325 and NGFW 115 accept a range of extensible network interfaces (including bypass modules that are often used with IPS), providing flexibility and adaptability to new network infrastructure. See Module Specifications for details.

Firewall throughput based on UDP 1518 bytes; NGFW throughput based on HTTP 21k bytes

Cloud Appliances

  • Unified Forcepoint NGFW software
  • Amazon Web Services (AWS)
  • Secures both north-south communication in/out of cloud and SDN east-west traffic



Virtual Appliances

  • Unified Forcepoint NGFW software
  • Available for KVM and VMware ESXi and NSX
  • Scales to 64 CPUs
  • Automates network microsegmentation
  • Can be clustered with physical firewalls
